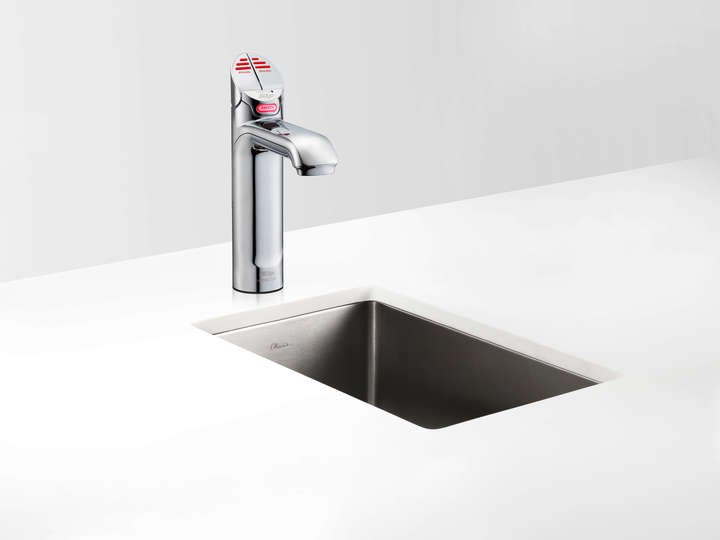

Zip Classic HydroTap B160 G4 Boiling and Filtered Bright Chrome
Zip Classic HydroTap B160 G4 Boiling and Filtered Bright Chrome is a durable tap with smooth operation and a clean design, suitable for commercial and domestic washrooms.
Key features & specifications
- ZIP CLASSIC HYDROTAP B160 G4 BOILING AND FILTERED IN BRIGHT CHROME Zip HydroTap Classic offers instant filtered boiling water, the iconic industrial design of the Classic remains a much loved and popular choice suited to any workplace or home. A safe energy-efficient and highly functional appliance which has different models to suit a range of business sizes and needs. Filtered water appliance featuring a single under bench command centre including full colour interactive touch screen display with pin code protection, 2 boiling water safety modes, 3 energy saving modes including sensor activated "sleep when its dark" and 0.2 micron water filtration Advanced Filtration Integral 0.2 micron NSF certified Zip MicroPurity filtration system offers 25 times better filtration than a standard water filter jug, eliminating bad taste and odour of chlorine, heavy metals and impurities as tiny as one fivethousandth of a millimetre, but leaving beneficial fluoride. Power-Pulse™ technology Reduces energy consumption by allowing the system to regulate its power during periods of high and low usage. Unique safety features The Zip HydroTap is designed with safety front of mind, with boiling isolation, cool touch tap and safety lock features. Touchscreen diagnostics The compact under-counter unit includes a simple PIN code protected touchscreen that puts the user in total control of the system, including temperature, dispensing time, safety features, energy-saving settings and continuous auto-diagnostics. Five year warranty This system is covered by a comprehensive full parts and labour warranty for 36 months, with an additional 24 months boiling tank cover Also available in Brushed Chrome, Gloss Black and Matt Black
Suitable for commercial and domestic washrooms needing a reliable, easy‑clean fitting.
MODEL |
MIXED HOT AND COLD |
FILTRATION 0.2 MICRON |
FONT | CO2 |
NOMINAL POWER RATING KW |
COMMAND CENTRE DIMENSIONS W X D X H |
HT1706UK | N | Y | Y | N | 2.05 kW @ 230V | 280mm x 455mm x 333mm |
Specification Type |
|
Product Code | HT1706UK |
Product Name | HydroTap G4 Classic boiling B160 bright chrome for work |
Capacity, Weights & Dimensions | |
Water functions | Boiling |
Boiling capacity | 160 Cups per hour |
Chilled capacity | N/A |
Unit dimension (W x D x H) | 280mm x 313mm x 335mm |
Product weight - empty / full | |
Plumbing | |
Wholesome water inlet supply required | Cold Feed |
Supply pressure range | 1.7bar - 5bar |
Supply connection (hot & cold) | 1 x isolated 1/2"bsp BSP fitting (flexible supply hoses included) |
Installation | Must comply with current water supply regulations |
Electrical | |
Command centre power rating | 1.90 kW @ 230V |
Voltage supply | 13 amps |
Power supply requirements | 1 x 13amp |
Cable length | 1.8m |
Installation | Must comply with current IEE regulations |
Tap design | |
Style | HydroTap Classic |
Finish | Bright Chrome |
Installation hole cut size | 35mm |
Rotation | Fixed |
Disability options | Yes |
Country of Origin | Australia |
Command Centre | |
Factory temperature boiling | 98°C |
Factory temperature chilled | N/A |
Filtration | 0.2 Micron Filter Cartridge |
Flow rate | 3.0-4.0 l/min |
Wholesome water supply requirements | Cold Feed |
Refrigerant | N/A |
Tank material | PPS |
Country of origin | Australia |
