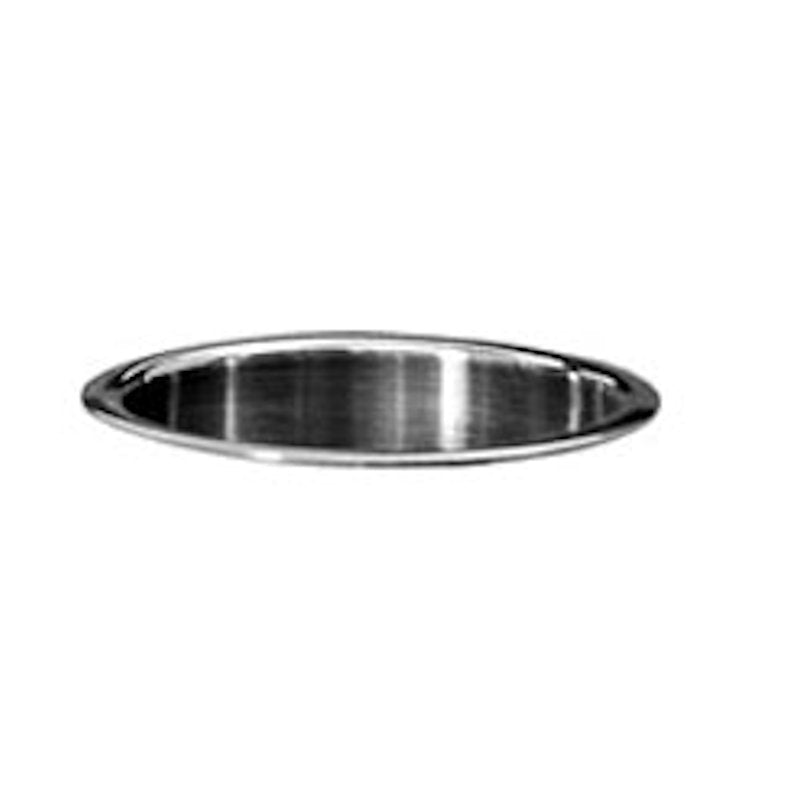

Bobrick Circular Waste Chute 176mm
Manufactured in type 304 stainless steel with a brushed satin finish
Flat flange suitable for counter-top, recessed or under-counter installation.
Provides access to under counter waste bin (not included)
| Product Code | Colour | Height (mm) | Diameter (mm) | Projection (mm) |
| B-529 | Brushed Satin | 115 | 176 | 11 |

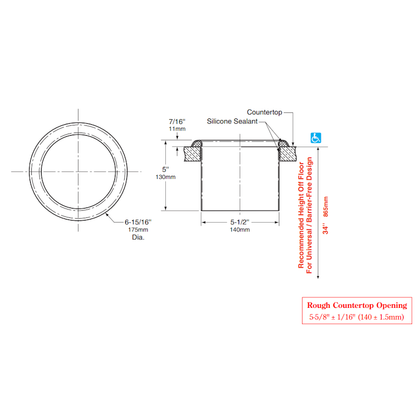

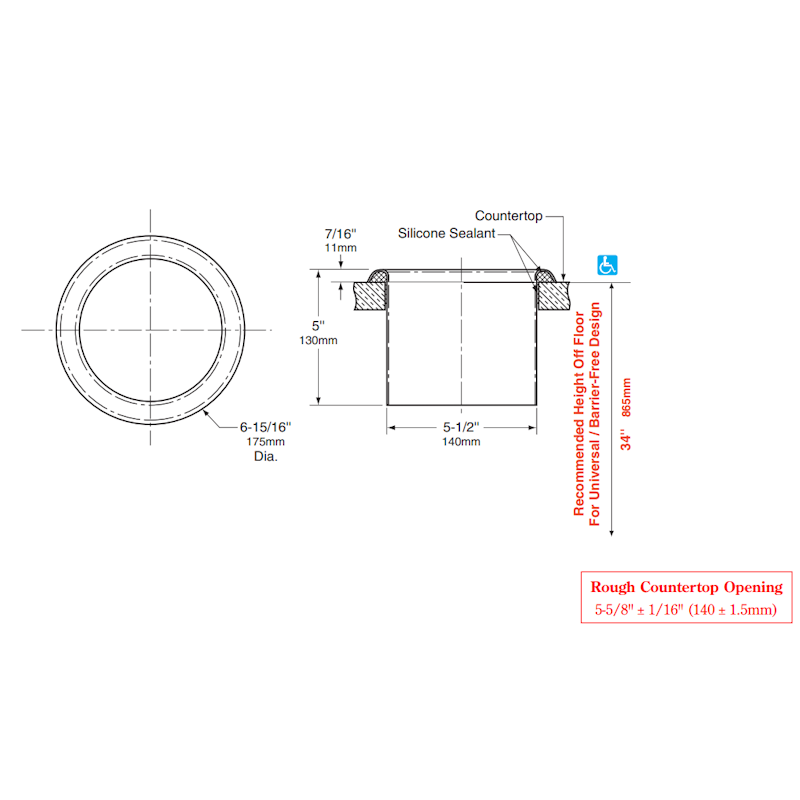

| Rough Countertop Opening | 5-5/8" ± 1/16" (140 ± 1.5mm) | |||
MATERIALS:
Circular Waste Chute — Type-300, 24-gauge (0.6mm) stainless steel. Exposed surfaces have bright polished finish.
INSTALLATION:
Unit is designed for installation in 5-5/8" ± 1/16" (140 ± 1.5mm) diameter hole in any countertop. To install unit permanently in place, cut hole in countertop. Fill in underside of waste chute lip and around portion of waste chute body which protrudes down into mounting hole with silicone sealant (not furnished). Install unit into countertop hole. Once unit is in place, wipe off any excess glue with a clean rag.
SPECIFICATION:
Circular waste chute for mounting in countertops shall be type-300 stainless steel with 5-7/16" (135mm) inside diameter, rolled lip and bright polished finish on exposed surfaces. Waste chute opening shall provide access to deposit waste into waste receptacle (not furnished) placed under the countertop. Manufacturer's service and parts manual shall be provided to the building owner/manager upon request.
