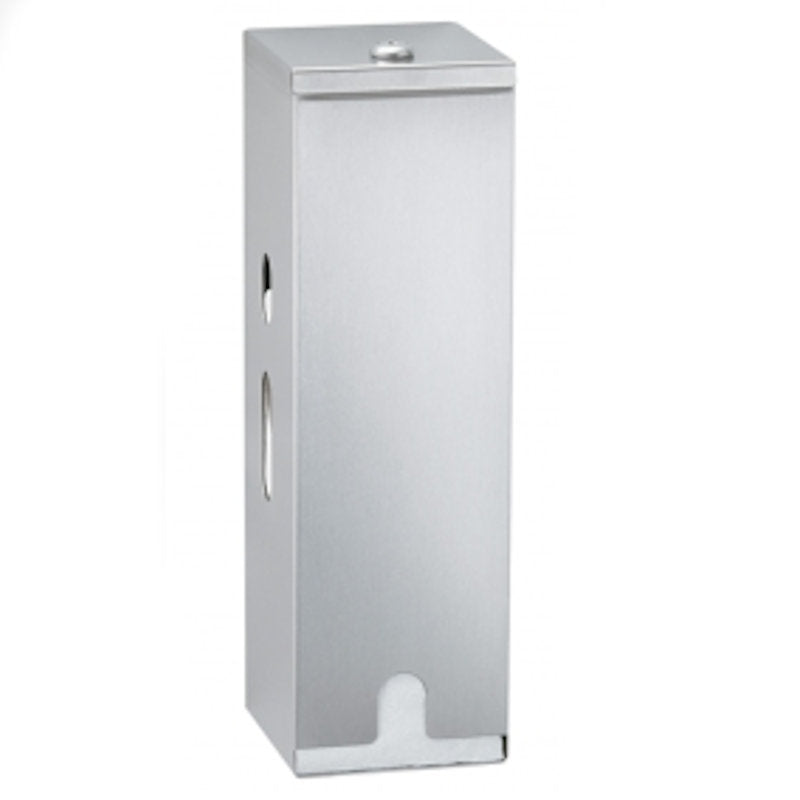

Bobrick Classic Triple Toilet Roll Holder
Bobrick Classic Triple Toilet Roll Holder is a well‑made product designed for everyday reliability, combining practical features with a straightforward design.
Key features & specifications
- Bobrick Classic Triple Toilet Roll Holder Holds 3 standard-core toilet tissue rolls up to 120mm diameter Extra rolls drop into place manually when bottom roll is finished. Equipped with key lock
- All locking accessories are keyed alike for ease and convenience of maintenance.
Suitable for both domestic and commercial settings.
| Product Code | Colour | Capacity | Height (mm) | Width (mm) | Depth (mm) |
| B-27313 | Brushed Satin | 3 Rolls max Ø 120mm | 380 | 120 | 125 |
MATERIALS:
Cabinet — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel. All welded construction. Exposed surfaces have satin finish.
Lid — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel. Exposed surfaces have satin finish. Lid secured to cabinet with hinge and equipped with a tumbler lock keyed like other Bobrick washroom accessories.
OPERATION:
Unit holds 3 standard-core toilet tissue rolls up to 4-1/2" (120mm) maximum diameter. Tissue rolls are loaded into the cabinet through the top. Extra roll shall be manually dropped in place when bottom roll is depleted.
INSTALLATION:

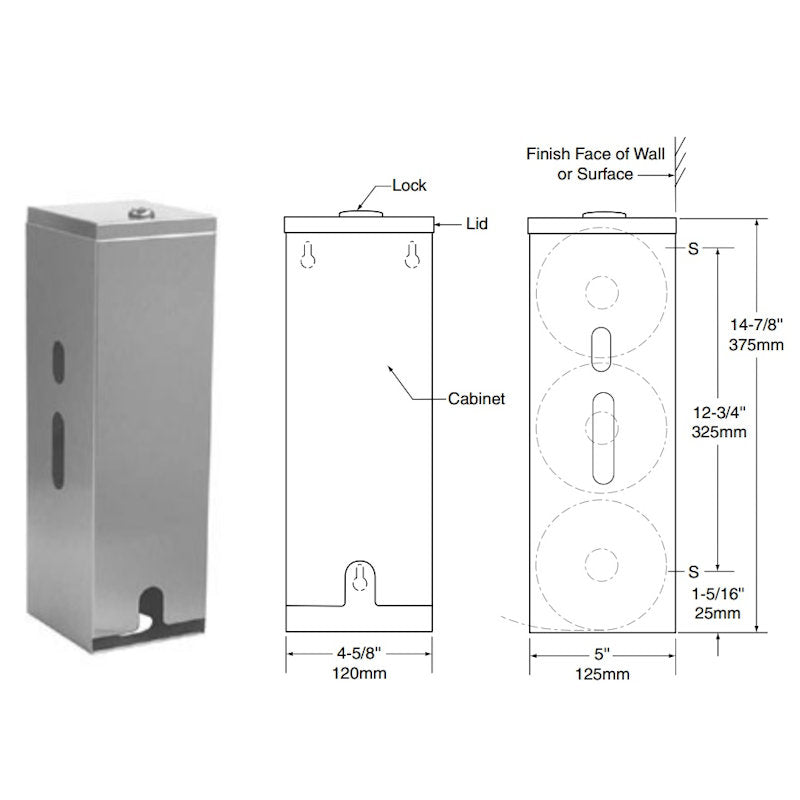

Mount unit on partition with three #10 x 5/8" (M4.8x 16mm) sheet-metal screws (not furnished) at points indicated by an S. For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheetmetal screws. For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws or provide 3/16" (5mm) toggle bolts or expansion bolts.
SPECIFICATION:
Surface-mounted three roll toilet tissue dispenser shall be type-304 stainless steel all-welded construction; exposed surfaces shall have satin finish. Lid shall be secured to cabinet with a hinge and equipped with a tumbler lock keyed like other Bobrick washroom accessories. Unit shall dispense three standard-core toilet tissue rolls up to 4-1/2" (125mm). Extra roll shall be manually dropped in place when bottom roll is depleted.
