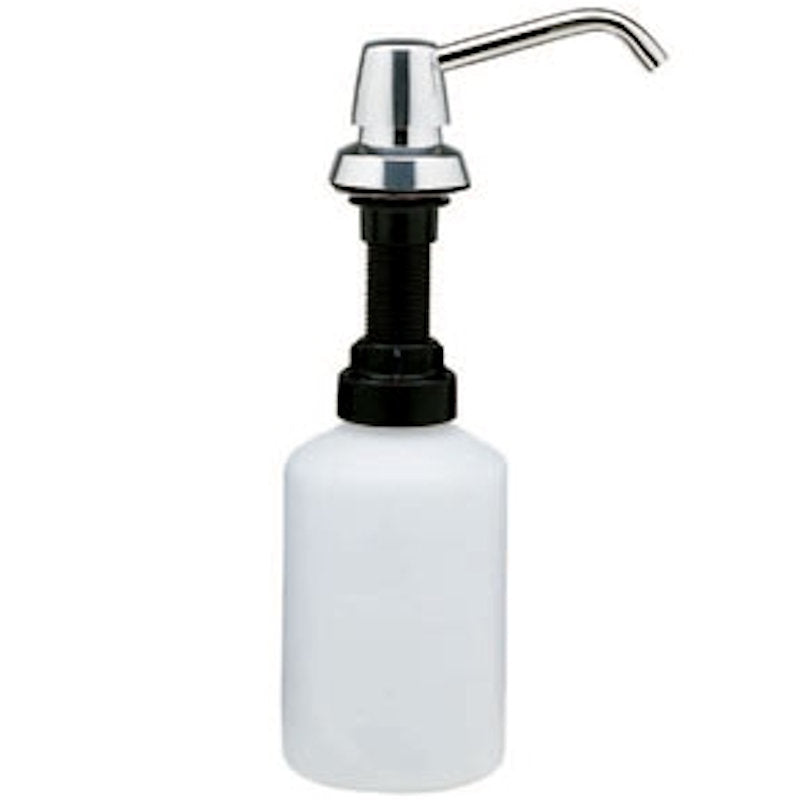

Bobrick Contura Counter Mounted Foam Soap Dispenser 600ml 150mm Spout manufactured from type 304 stainless steel with a polished chrome finish
Corrosion Resistant
Polished Chrome stainless steel cover and spout
High impact resistant ABS body and shank
Shatter resistant polyethylene soap container
Spout Length : 150mm - Vandal-resistant spout can rotate 360° without damage to unit
Capacity 600ml
Escutcheon bright polished ABS
Top filling for ease of maintenance
Unit is designed for installation in 1'' (25mm) diameter hole in porcelain-enameled steel, cast-iron or vitreous-china lavatories, as well as in countertops adjacent to lavatories. Unit may be mounted in unused faucet hole or through special hole requisitioned when lavatory is ordered from manufacturer (specify punching location). Shank accommodates maximum 4'' (100mm) mounting thickness and can be cut in the field. Clearance required for container diameter is 3-3/8'' (85mm).
Designer’s Note: Bobrick foam soap dispensers are designed to dispense commercially marketed all-purpose liquid foam hand soaps.
| Product Code | Colour | Capacity | Height (mm) | Diameter (mm) | Projection (mm) |
| B-82316 | Polished Chrome | 600ml | 155 | 55 | 175 |
MATERIALS:
Piston, Spout, and Top Cover — Type-304 stainless steel with bright polished finish.
Cover Spacer — Rigid, impact-resistant polyester.
Escutcheon — Chrome-plated, high-impact-resistant ABS with bright polished finish.
Concealed locking mechanism. Body and Shank — High-impact-resistant plastic.
Valve — ABS cylinder. Stainless steel spring. U-packing seal and duckbills.
Container — Translucent, shatter-resistant polyethylene. Capacity: 20-fl oz (0.6-L).
OPERATION: Top-fill counter-mounted manual liquid foam soap dispenser shall dispense 7ml of foam using 0.5ml of commercially marketed liquid foam soaps. Vandal-resistant spout can rotate 360° without damage to unit. Escutcheon locks to body with concealed locking mechanism that is opened with special key provided. To fi ll from top, unlock cover and remove piston, spout, and supply-tube assembly. Unit may also be fi lled by removing container from below lavatory. Designer’s Note: Bobrick foam soap dispensers are designed to dispense commercially marketed all-purpose liquid foam hand soaps.
INSTALLATION: Unit is designed for installation in 1" (25mm) diameter hole in porcelain-enameled steel, cast-iron or vitreous-china lavatories, as well as in countertops adjacent to lavatories. Unit may be mounted in unused faucet hole or through special hole requisitioned when lavatory is ordered from manufacturer (specify punching location). Shank accommodates maximum 1" (25mm) mounting thickness and can be cut in the field. Clearance required for container diameter is 3-5/16" (85mm).
SPECIFICATION: Lavatory-mounted soap dispenser shall dispense commercially marketed all purpose hand soaps. Piston and spout assembly shall be type-304 stainless steel with bright polished finish. Escutcheon shall lock to body with concealed locking mechanism that is opened only with special key provided. Spout shall rotate 360° without damage to valve mechanism. Piston, spout, and supply-tube assembly shall be removable from top for filling and maintenance. Valve shall be equipped with plastic cylinder, stainless steel spring, U-packing seal, and duckbills. Shank shall accommodate mounting thicknesses up to 1" (25mm). Translucent, shatter-resistant polyethylene container shall have a capacity of 20-fl oz (0.6-L)
