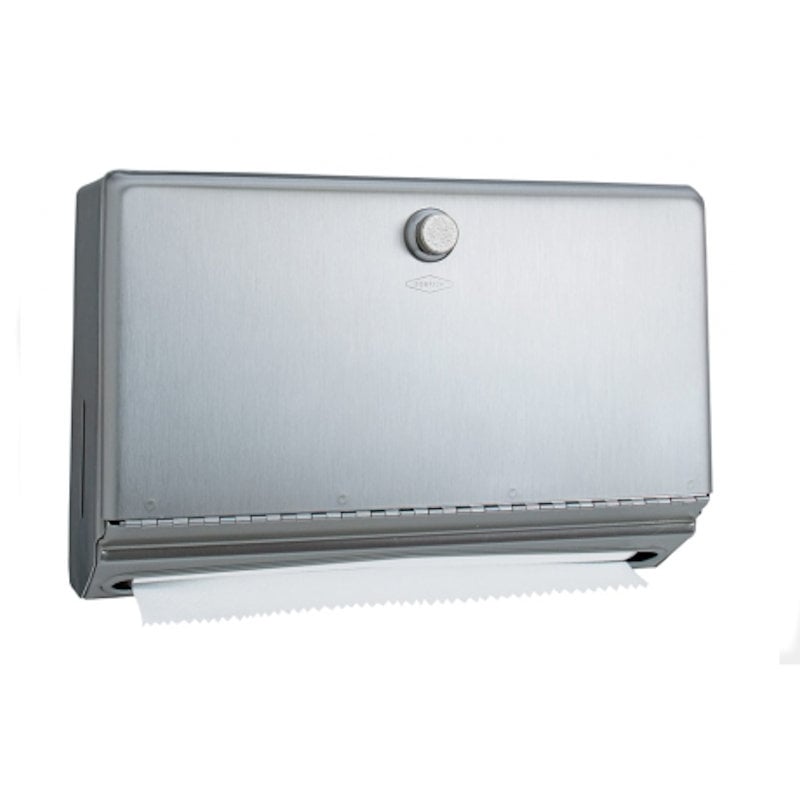

Bobrick Mini Paper Towel Dispenser with Knob-Latch
Bobrick Mini Paper Towel Dispenser with Knob-Latch is a well‑made product designed for everyday reliability, combining practical features with a straightforward design.
Key features & specifications
- Complete Amenity. Proper hygiene practices are encouraged with the best method of hand drying in place. Cleanliness elicits a comfortable environment and professional business image. Customers will be highly satisfied and most likely to return in an establishment where they experience utmost convenience.
- Space-Saving Fixture. The wall-mounted type is compact and suitable for most washrooms, especially in areas with limited room such that it does not take up precious counter space.
- High Security. Protect against theft, misuse and vandalism by installing an all-welded, heavy duty 304 grade stainless steel mini towel dispenser with Knob-Latch.
- Flexibility. Bobrick's mini dispenser accommodates 275 multifold or 200 C-fold paper towels without the need for adjustments or adapters. Apart from hand drying, paper towels can be used for cleaning up a myriad of kitchen situations such as spills or messy surfaces.
- Ease of Use. Paper towels are dispensed without being torn apart through the hemmed towel tray opening. Maintenance comes easy with resource levels indicated on the slots on the sides of the cabinet, right on the unit itself that's designed for quick replenishing.
Suitable for both domestic and commercial settings.
| Product Code | Colour | Capacity | Height (mm) | Width (mm) | Depth (mm) |
| B-2621 | Brushed Satin | 200 C-fold | 180 | 275 | 100 |
MATERIALS:
Cabinet — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel. All-welded construction. Exposed surfaces have satin finish. Towel tray has hemmed opening to dispense paper towels without tearing.
Door — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Secured to cabinet with a full-length stainless steel piano-hinge. Equipped with a knob latch.
Optional: Order Bobrick Part No. 262-130 TowelMate™ available as on optional accessory. TowelMate accessory allows for paper towels to dispense one at a time without bulging, sagging or falling through the towel tray opening. TowelMate fits Gamco and most manufacturers' similar models.
OPERATION:
Unit dispenses C-fold and multifold paper towels 3-1/8" to 3-13/16" (79–97mm) deep. Slots in sides of cabinet indicate refill time. Capacity: 200 C-fold or 275 multifold paper towels. To dispense narrower towels 2-1/2" to 3-1/8" (64–79mm) deep, order optional TowelMate accessory Bobrick Part No. 262-130.
INSTALLATION:

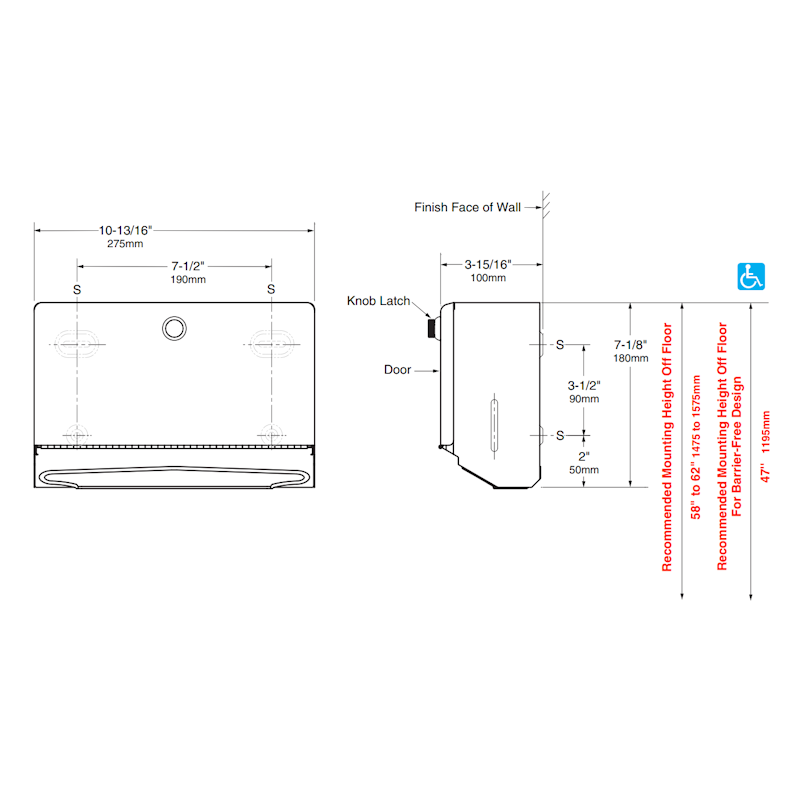

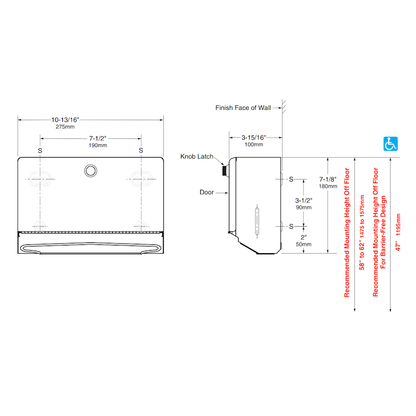

Mount unit on wall with four #10 x 1-1/4" (4.8 x 32mm) sheet-metal screws (not furnished) at points indicated by an S. For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheetmetal screws. For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws, or provide 1/8" (3mm) toggle bolts or expansion bolts.
SPECIFICATION:
Surface-mounted paper towel dispenser shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Door shall be secured to cabinet with a full-length stainless steel piano-hinge and equipped with a knob latch. Paper towel tray shall have hemmed opening to dispense paper towels without tearing. Unit shall be capable of dispensing 200 C-fold or 275 multifold paper towel measuring 3-1/8" to 3-13/16" (79 to 97mm) deep. Narrower paper towels 2-1/2" to 3-1/8" (65 to 79mm) deep may be efficiently dispensed with the use of an optional TowelMate accessory, Bobrick Part No. 262-130. TowelMate accessory allows for paper towels to dispense one at a time without bulging, sagging or falling through the towel tray opening.
