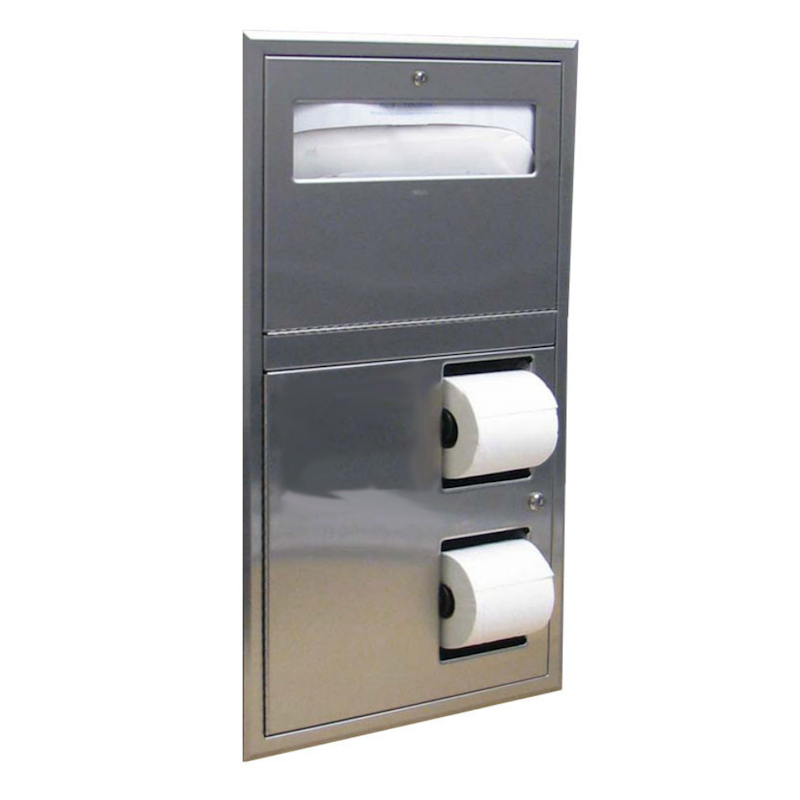

Bobrick Recessed Toilet Seat Cover Dispenser and Toilet Roll Holder

Bobrick recessed toilet seat cover dispenser with double toilet roll holder holds 2 standard toilet roll and 500 toilet seat covers

Doors unlock with key provided and swing open for filling.

Toilet seat-cover dispenser holds 500 single- or half-fold paper covers.

Spindles may be removed from cabinet when door is open.

Unit holds two standard-core toilet tissue rolls up to 135mm diameter

Notes

- Recessed B-3474 mounts flush against side wall in accessible toilet compartment and has toilet tissue dispenser on right side of unit.

- Position unit on panel with centerline of toilet tissue dispenser 7" - 9" (180 - 230mm) in front of leading edge of toilet.

- For B-3474 on left side of toilet (when seated on toilet) rear edge of rough wall opening should be 24-5/8" (625mm) from rear to position toilet tissue dispensers centerline 7" to 9" (180 to 230mm) in front of leading edge of toilet. Cut-out locations based on toilet projecting 27-1/2" (700mm) from rear wall.

- For unit to mount on right side of toilet (when seated on toilet) see model B-34745.
