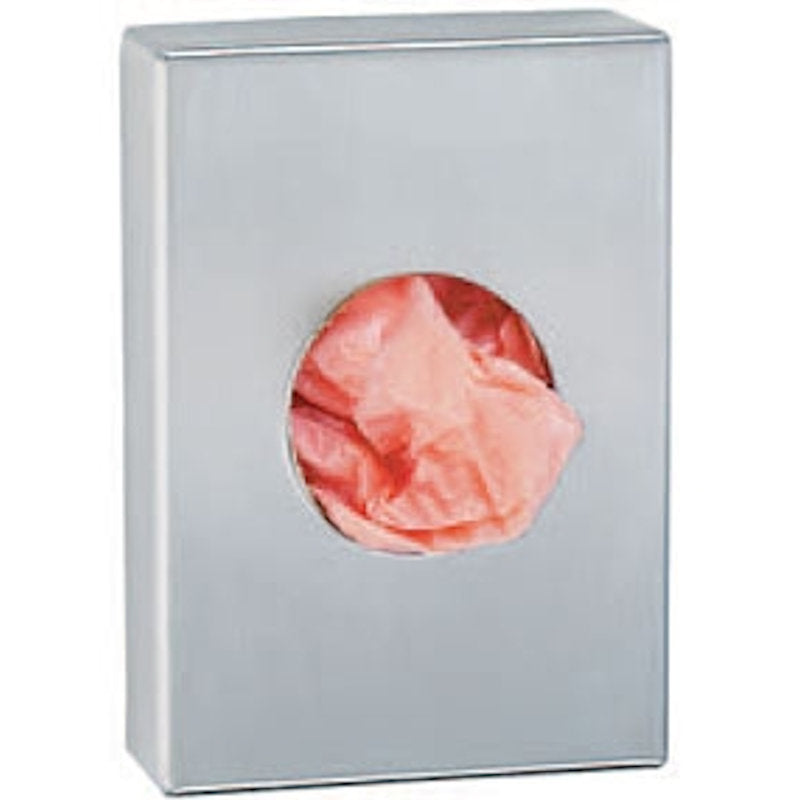

Bobrick Sanitary Bag Dispenser manufactured from type 304 stainless steel with a brushed satin finish
Equipped with concealed locking device.
Holds one pack of 25 two-ply plastic bags (not supplied).
| Product Code | Colour | Capacity | Height (mm) | Width (mm) | Depth (mm) |
| B-3541 | Brushed Satin | 1 Box | 135 | 95 | 25 |
Materials:
Cover – 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Wall Plate – 18-8 S, type-304, 22-gauge (0.8mm) stainless steel.
Operation:
Sanitary disposal bag pulls out. Cover snaps off for filling. Capacity: one sanitary disposal box.
Installation:
For partitions with particle-board or other solid core, secure with two #8 x 1/2'' (M4.2 x 12.5mm) sheet-metal screws (not furnished) at all points indicated by an S, or provide through-bolts, nuts, and washers. For hollow-core metal partitions, provide solid backing into which sheet-metal screws can be secured. If two units are installed back-to-back, then provide threaded sleeves and machine screws for the full thickness of partition. For masonry walls, provide fiber plugs or expansion shields for use with sheet-metal screws, or provide 3/16" (5mm) toggle bolts or expansion bolts. For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws.
Specification:
Surface-mounted sanitary disposal bag dispenser shall be type-304 stainless steel. Exposed surfaces shall have satin finish. Cover shall snap off wall plate for refilling. Unit shall have a capacity of one sanitary disposal bag box.
