Consort MRX1 Multi Zone Controller

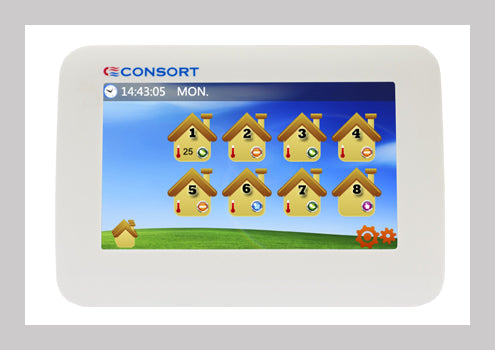

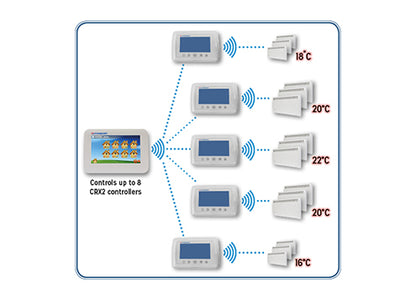

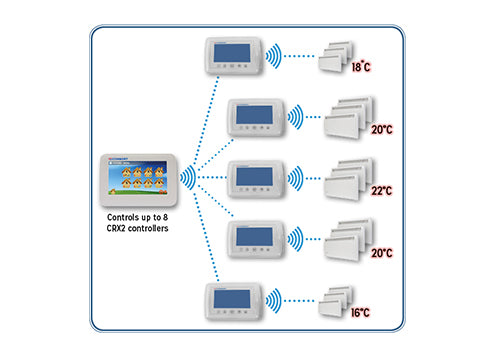

The MRX1 Multizone wireless controller is a central control unit that can separately control up to 8 heating zones using the existing CRX2 controllers. Each CRX2 can control multiple Consort RX heaters in the same room or zone. The MRX1 controller has a large touchscreen LCD colour display. A 7-day programme with 6 time periods per day can be set separately for each zone and if required, be duplicated across other zones. Temperature adjustments for all zones can also be done simultaneously.

• Mains powered
• Central control unit for a maximum of 8 heating zones
• The MRX1 allows you to change the zone programme individually or as a group
• Group Control feature allows setting a preferred operating mode and temperature in all heating zones simultaneously
• Compatible with CRX2 controller
• 4 different operating modes: Boost, Manual, Set back (Economy) & Program
• 15-minutes Boost feature providing maximum comfort quickly with temperature control
• Simple to set up and easy to programme
• Touchscreen control
• Large backlit LCD colour display for easy reading
• Stylish and sleek modern design
• Option to limit min/max temperature
• Individual zone programme can be changed from either MRX1 or CRX2
• Can be retrofitted to RX systems
• Temperature display of either degrees Celsius or Fahrenheit

MRX1 ENERGY SAVING FEATURES

• 6 temperature programmes per day
• 7-day heating programmes per week
• Half heat when approaching target temperature*
• Maintains temperature within 0.5°C
• Set temperature in 0.5 degrees increments
• Reduced power consumption in standby mode


* Half heat feature does not apply to 0.5kW & 0.8kW heaters
