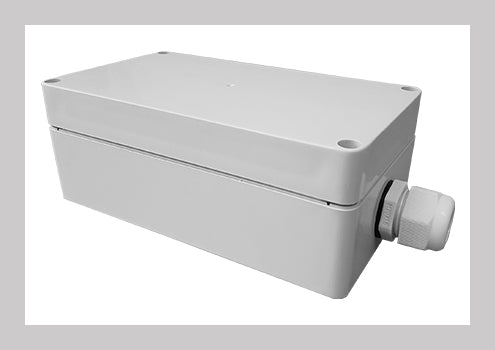

Consort RX Receiver Unit

Our RXREC receiver unit enables certain air curtains controlled by a remote switch to be wirelessly controlled by a CRXSL controller, expanding the heating control options to include temperature and time control. The RXREC can be retrofitted to existing compatible air curtains. With RXREC installed, a CRXSL controller replaces the existing remote switch. The Time/Manual mode in a CRXSL controller takes advantage of the RXREC long range performance to allow heaters to be controlled from a different room. The RXREC wireless receiver can be positioned near the heater or in any other convenient place. Care should be taken when choosing a position to avoid places where there would be metal objects between the RXREC and CRX2. The RXREC should be positioned the way that the status light is visible to the user.

RETROFIT

Can be retrofitted to existing compatible Claudgen products.

CONNECTIVITY

Each heater must be connected to an RXREC for it to be controlled by a separately purchased CRXSL.

FLEXIBILITY

Multiple heaters can be controlled by a CRXSL.

PERFORMANCE

Long range performance dependent on building construction.

The RXREC wireless receiver is wired to the heater by a 6 core flexible cable 0.5 - 1.5mm rated for the mains voltage. Remove the top cover to access electrical terminals and follow the wiring diagram below. The RXREC can control only one heater. The L terminal must be always wired to terminal 1 on the heater, never directly to the L terminal. Both jumper switches should be set to position 1 - 2. The RXREC is only compatible with following heaters: HE8326, HE7433, CA1309S, CA1312S, CA1509S, CA1512S, CA1514S, CA1516S, RAC1309, RAC1509, RAC1512, CH06CSi, CH06CPi, CH09i, CH12i, CH15i.

Dimensions (mm):- H:90 D:61 W:158
