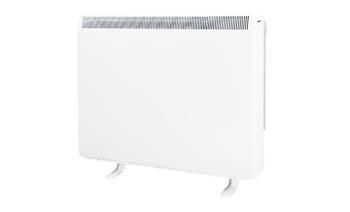

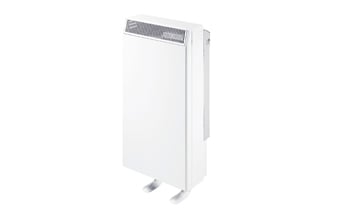

The Creda TSR Slimline Manual Storage Heater works on any low-cost tariff, these heaters will monitor the room temperature and energy stored within the heater core to avoid overcharging.
This funcition can save you up to 15% of the energy used by ordinary storage heaters
Key features include
- Simple controls - one for input and one for output
- lockable controls cover
- Manual control adjustment
The TSR Slimline model offers the same range of sizes and ouputs but with simple manual input and output controls
Please note that due to the weight of the storage heaters additional carriage may be required, please ask a member of our sales team for further information.
| Product Code | Rating Storage (kW) |
Charge Acceptance (7hrs)(kWh) |
Elements | Core Bricks |
| TSR6MW | 0.9 | 6.3 | 1 | 4 |
| TSR12MW | 1.68 | 11.8 | 2 | 8 |
| TSR18MW | 2.5 | 17.6 | 3 | 12 |
| TSR24MW | 3.4 | 23.5 | 4 | 16 |
| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
| TSR6MW | 705 | 335 | 170 | 41 |
| TSR12MW | 705 | 260 | 170 | 77 |
| TSR18MW | 705 | 788 | 170 | 110 |
| TSR24MW | 705 | 1016 | 170 | 145 |
Technical Specification
- Elements (storage) - mineral insulated stainless steel sheathed
- Insulation - opacified silicaceous aerogel and mineral fibre mat
- Storage core - high density iron oxide compound
- Controls* (Output) - manually adjustable thermostat controlling output damper
- Controls (Input) - hydraulic charge control thermostat, manually adjustable
- Protection - two level thermal safety overheat
- Supply - 230/240V AC single phase
*TSR6MW have no user controls and are IPX2 rated (drip-proof)
