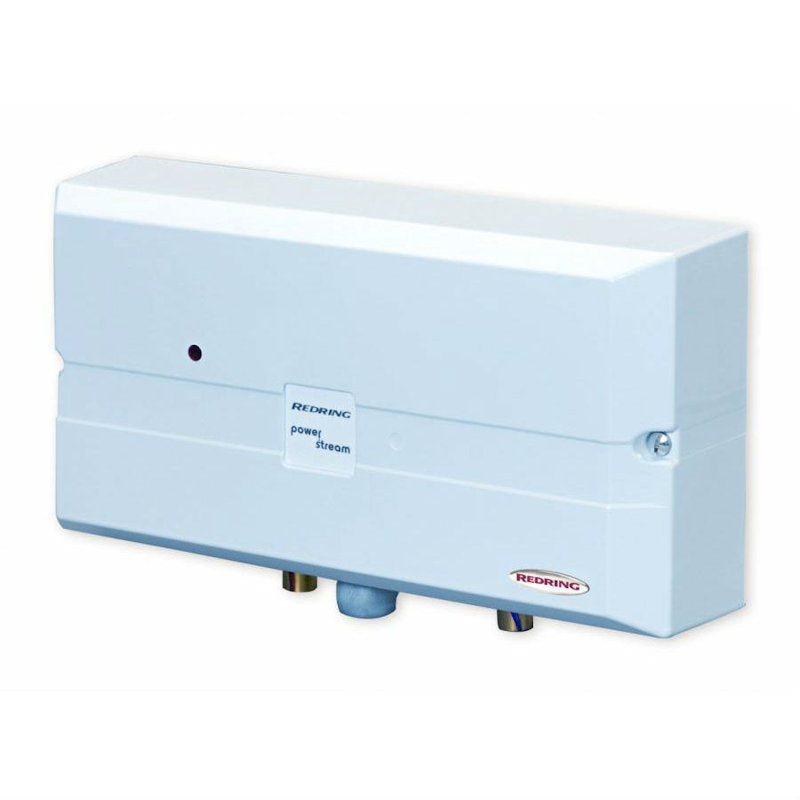

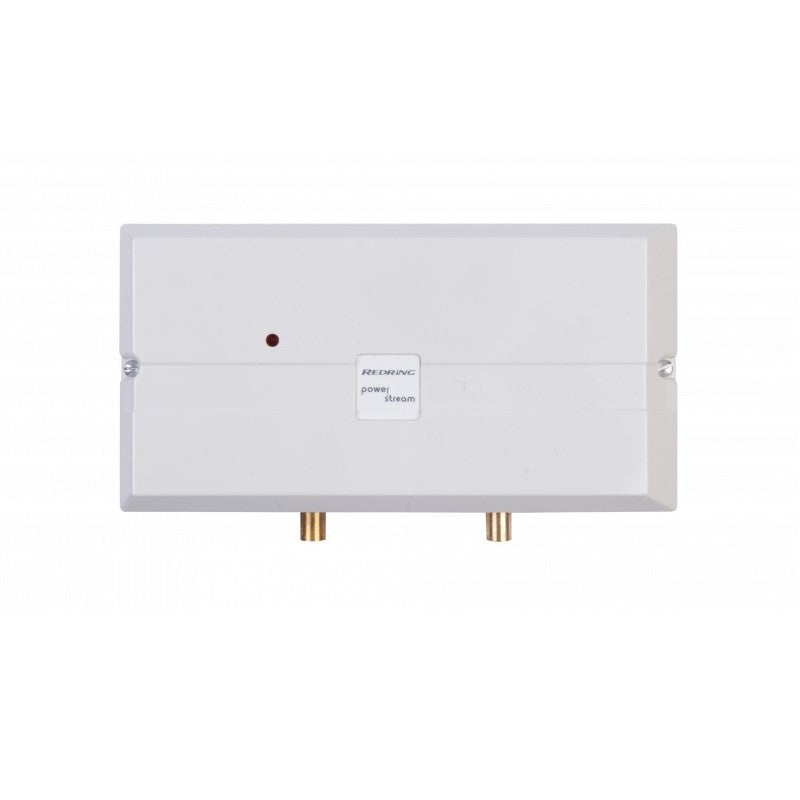

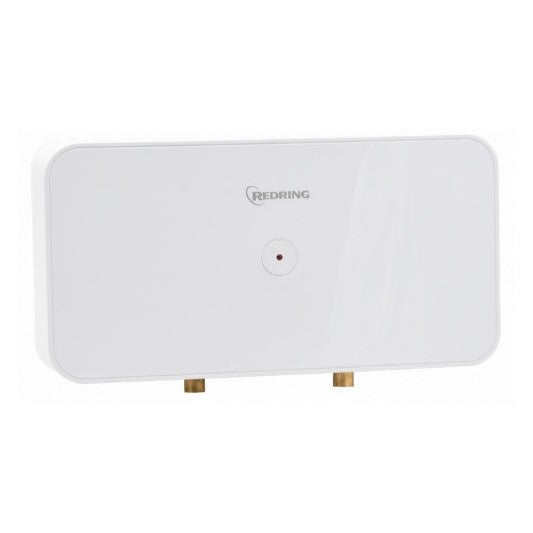

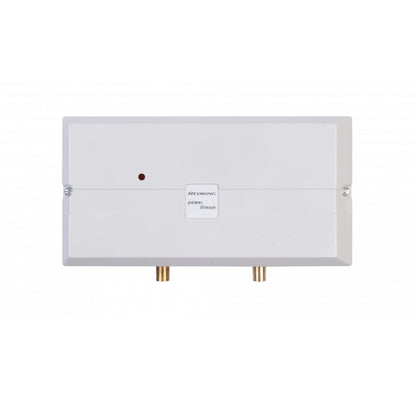

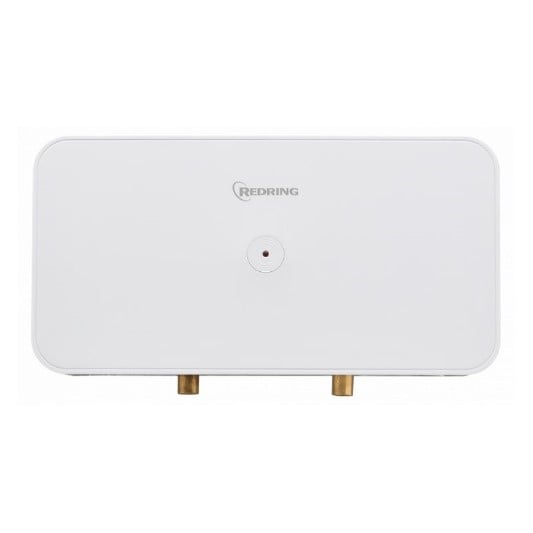

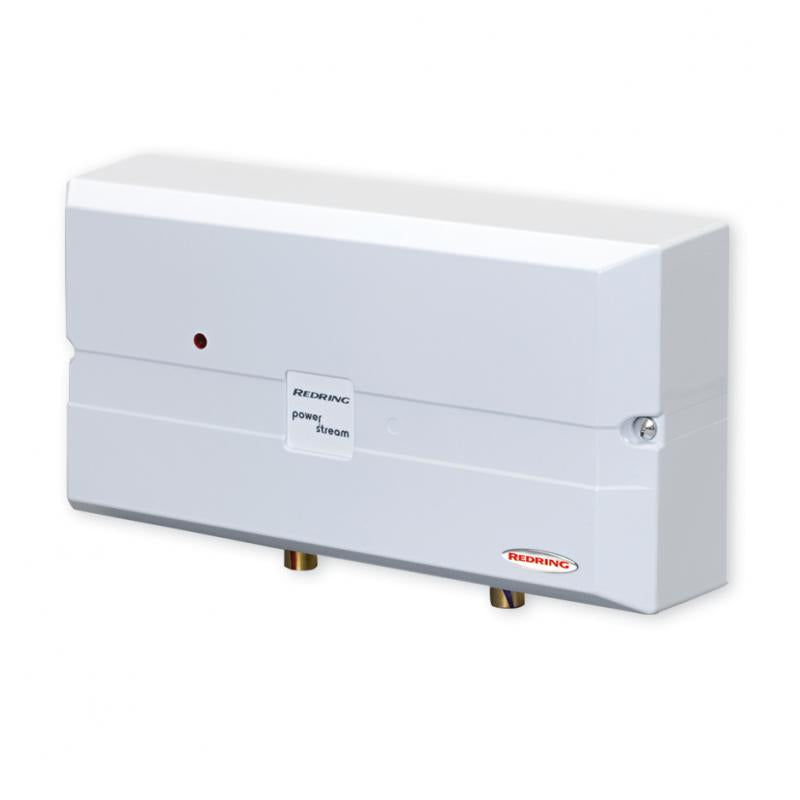

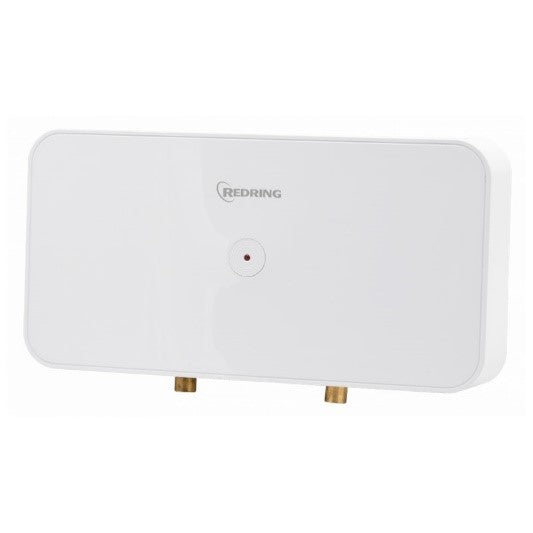

Redring Powerstream RPS Instantaneous Water Heater
The Redring Powerstream unvented instantaneous water heater delivers instant hot water at point of use. This compact and unique design eliminates the need for centrally stored hot water cylinders saving on electricity usage and important space.
Small and compact inline instantaneous water heater ideal for hand basin supply.
Design allows for installation in 4 different orientations giving flexibility to installers.
Instantaneous heating at point of use, eliminates long inefficient pipe run heat loss to a centrally located cylinder, saving space and energy.

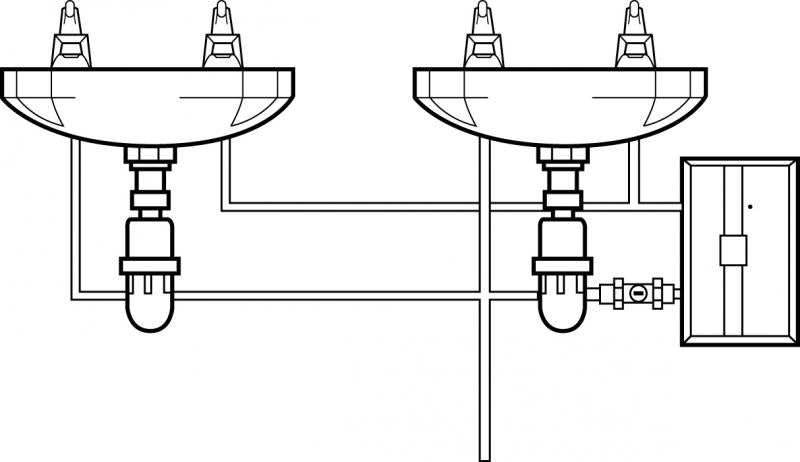

Suitable for two hand wash basins or a manual mixer shower and hand basin (with the RM2 accessory)
A Energy efficiency rated
Manufacturers 2 year UK guarantee
Key Features
- Power rating option - 9.5kW, 10.8kW or 12kW
- Direct mains supply
- Remote fitting option
- No standing heat losses
- Fast response
- Half power selection available on installation
- Corrosion resistant steel backplate
- Water supplied to 1 or 2 outlets (2 basins or 1 basin & 1 shower)
| Item Code | 078391 | 078421 | 078438 |
| Old SKU | RP1 | RP10.8 | RP12 |
| NEW SKU | RPS95 | RPS108 | RPS12 |
| Power Output (kW) | 9.5 | 10.8 | 12 |
| Dimensions H x W x D (mm) | 160 x 307 x 84 | 160 x 307 x 84 | 160 x 307 x 84 |
| Current Rating (Amps) @240V | 40 | 45 | 60 |
| Element Resistance (Ohms) | 12 | 10.6 | 9.6 |
| Thermal Cut-out Protection | 2 stage - cyclic and manual reset | ||
| Energy Rating (Class) | A | A | A |
| Energy Rating (%) | 39% | 39% | 39% |
| Consumption (kWh/A) | 473 | 468 | 469 |
| Sound (dB) | 15 | 15 | 15 |
| Operating Pressure (bar) | 1 - 6 | ||
| Minimum Flow Rate (l/min) | 2.7 | 3.3 | 3.3 |
| Water Connections | Ø15mm plain copper shank | ||
| IP Rating | IPX4 | IPX4 | IPX4 |
