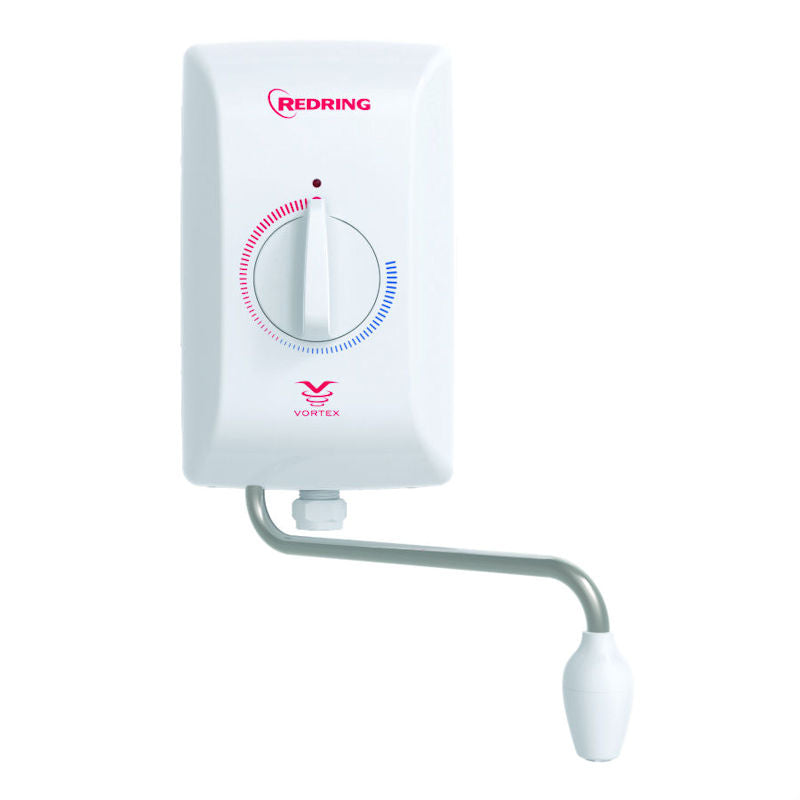

Instant Hand Washes are compact, wall mounted warm water dispensers, delivering an unlimited supply of heated water typically used for hand and face washing.
Connected to a cold water supply only and the mains electricity and provide instant hot water.
They do not store hot water but heat as they dispense - hence, instant and convenient.
They are simple and economical to use with a single control for Start/Stop and temperature selection (manual) or hands free control (auto).
They are suitable for high or low pressure plumbing systems.
Key Features
- Energy Efficiency Class - A
- Simple to fit direct swap with previous Redring I3V installations
- Heat on neon indicator and overheat protection
- Anti-vandal spray head and swivel 200mm stainless steel spray arm
- Timed shut off after 40 seconds save water and power
- Installer adjusted water temperature
| Product Code | Type | Power (kW) | Weight | Height (mm) | Dia (mm) |
| I3VS | Manual | 3.0 | 50 | 620 | 430 |
| AV3S | Automatic | 3.0 | 70 | 808 | 430 |
Technical Specifications
| Model |
Instant Hand Wash Unit 3 3kW 43678901 |
Autosensor Instant Hand Wash Unit 3kW 43679901 |
|---|---|---|
| Water Connection Type | 15mm plain shank push fit | 15mm plain shank push fit |
| Energy Efficiency Class | A | A |
| Load Profile | 3XS | 3XS |
| Operating Water Pressure | 0.7 7 bar (10-100 PSI) | 0.7 7 bar (10-100 PSI) |
| Overheat Protection | 1 | 1 |
| Electrical Power | 3 | 1 |
| Annual Electricity Consumption | 204.762 | 1 |
| Width | 140 | 3 |
| Height | 228.5 | 191.656 |
| Depth | 99 | 140 |
| IPX Rating | 4 | 228.5 |
| UK Guarantee | 1 | 83.5 |
| Cable entry points | 3 | 4 |
| Energy Efficiency | 37.33 | 2 |
