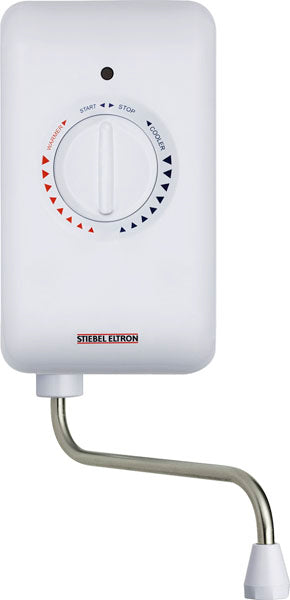

Stiebel Eltron Instant Hand Wash Unit 3.1kW
Stiebel Eltron Instant Hand Wash Unit 3.1kW is a well‑made product designed for everyday reliability, combining practical features with a straightforward design.
Key features & specifications
- The Stiebel Eltron Instant Hand Wash Unit is easy to user friendly requiring minimal tools for installation. It is fitted with a female push-fit connection directly into the mains water supply. It has has a built in temperature cut out set at 52ºC which prevents overheating and ensures that there is no scolding. It is easy to use with a large thumb/finger grip to switch the unit on and adjust the temperature. The swivel spout is 200mm stainless steel and positions above the sink and has a spray water nozel which can be removed/replaced when required.
- Temperature stabiliser ensures water temperature remains maintained across a range of water pressures
- Safety cut out set at 52°C prevents overheating (reset at 42°C)
- Direct mains water supply using 15mm water pipe
- connection to water supply to rear or bottom of unit
- Wall fixing plugs and screws included
- No standby energy consumption
- 200mm Stainless steel swivel spout with removable spray nozzle
- Pure white ABS finish
- Power: 3.1kW, 13A, 240V, 50Hz
- Min cable size required 1.5mm2
- IPX 5 Rated
Suitable for both domestic and commercial settings.
Product Code | Type | Power (kW) | Height (mm) | Width (mm) | Depth (mm) |
DN 3 | Manual | 3.1 | 235 | 151 | 85 |
Technical Specification
Water Connection Type | 15mm ext. diameter (copper or push fit stem elbow |
Energy Efficiency Class | A |
Minimum Operating Water Pressure | 0.1 MPa (1 bar) |
Maximum Static Pressure | 0.7 MPa (7 bar) |
Cable entry points | 2 - Bottom & Rear |
Water Entry Points | 2 - Bottom & Rear |
IPX Rating | 5 |
UK Guarantee | 2 Years |
Overheat Protection | Yes |
