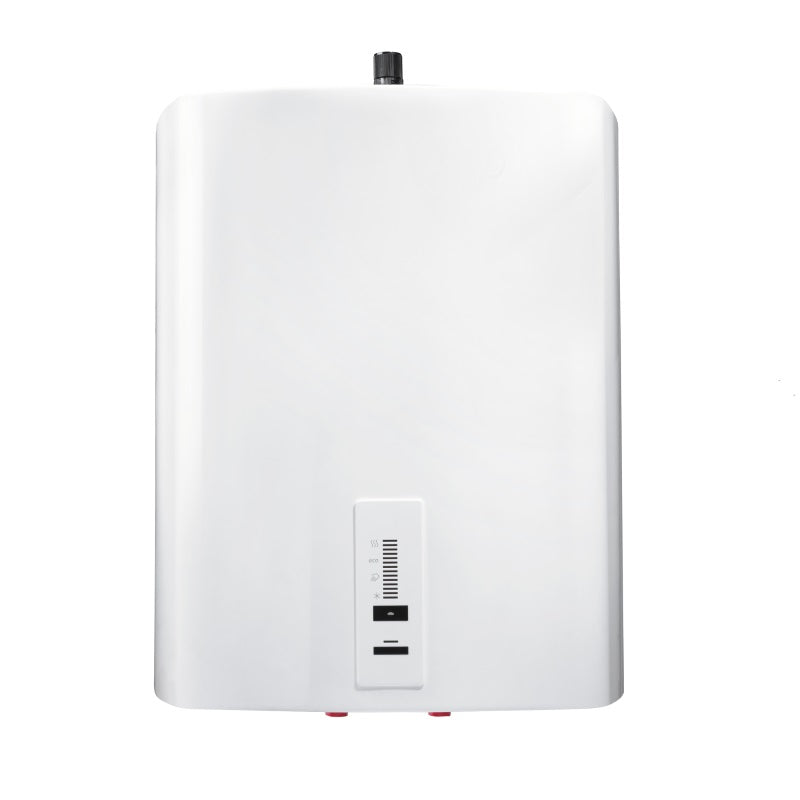

Zip Aquapoint IV SmartEco Unvented Water Heater

Aquapoint SmartEco Water Heaters available in 30 50 80 and 100 litres

Aquapoint 4 is a sustainable, durable and efficient wallmounted hot water solution, suitable for both workplace
and home environments. With four capacity options, the model boasts a number of innovative features, including
its SmartEco mode and anti-legionella function.

Controls Supplied

Pressure reducing valve and line strainer set to 3.5 bar

Pressure relief and single check valve set to 6 bar

Pressure and temperature relief valve set to 7 bar and 90ºC

External expansion vessel pre-charged to 3.5 bar

Features

• Hot water for one or more outlets
• Used with conventional taps or mixers
• Glass lined steel storage tank tested to 13 bar
• Sacrificial anode for protection against corrosion
• Element ‘ON’ neon indicator
• External temperature control with frost protection
• High performance foam insulation

Technical Features

Unvented, multipoint water heater

Hot water storage tank of 1.8mm thick glass enamelled steel tested to 13 bar. 3.0 kW heating element

Fitted with a sacrificial anode.

Adjustable thermostat with a range of 25ºC to 75ºC

Resettable over temperature safety cut out

All necessary accessories supplied

Element ‘ON’ neon indicator

High density CFC-free polyurethane foam insulation

Corrosion resistant white plastic case

BSP water connections

Supplied with installation kit

Capacity 30 litres, 50 litres, 80 litres and 100 litres.

Rating 3.0 kW.

Heating element Embedded rod type, can be replaced without draining.

Thermostat Capillary type adjustable up to 25ºC to 75ºC.

Water tank 1.8mm glass enamelled, steel tested to 13 bar, with a working pressure of 3.5-4 bar.

Case High impact and corrosion resistant white plastic.

Insulation High density, CFC-free polyurethane foam.

Safety features

a) manually resettable over temperature safety cutout set to 84ºC +/– 5ºC.

b) expansion relief valve (supplied) set at 6 bar.

c) protected against frost whilst power is on.

d) sacrificial anode mounted on element plate for added protection against corrosion for element and tank against corrosion – must be checked regularly (6 months) and replaced where necessary as gradual erosion will occur. In extreme cases local water conditions can cause rapid erosion of the anode resulting in particles being deposited as a residue.

Approvals WRAS approved and CE endorsed.

Warranty One-year on site parts and labour.

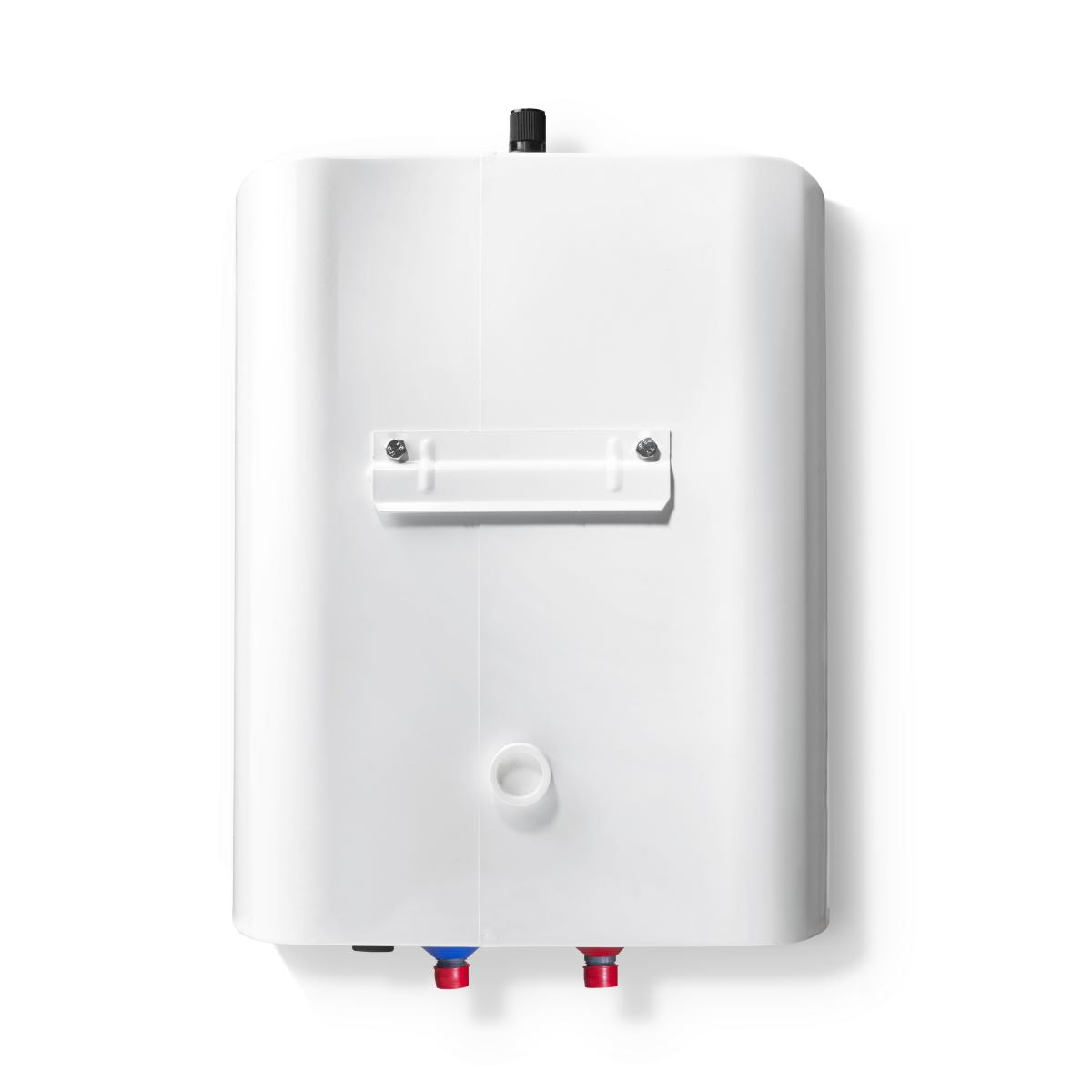

Installation Location :The water heaters should be wall mounted oversink. All models can supply one outlet or multiple outlets with no special taps required. When deciding the final location of the heater, consideration should be given to the safe and visible disposal of any water resulting from leaks. This is particularly relevant when the heater is located in a roof space, cupboard or any concealed location.

Plumbing Water connections 15mm BSP.

Minimum recommended water pressure 1 bar.

Pressure relief valve set at 6 bar.

Pressure and temperature relief valve, where fitted requires plumbing to waste in accordance with water byelaws.

Electrical To be wired to a double pole fused spur, minimum break rating 13 amps.

Installation must comply with current IEE regulations.

Caution Variable temperature water heaters should be set only in strict compliance with regulations governing the temperature of stored and dispensed hot water.
