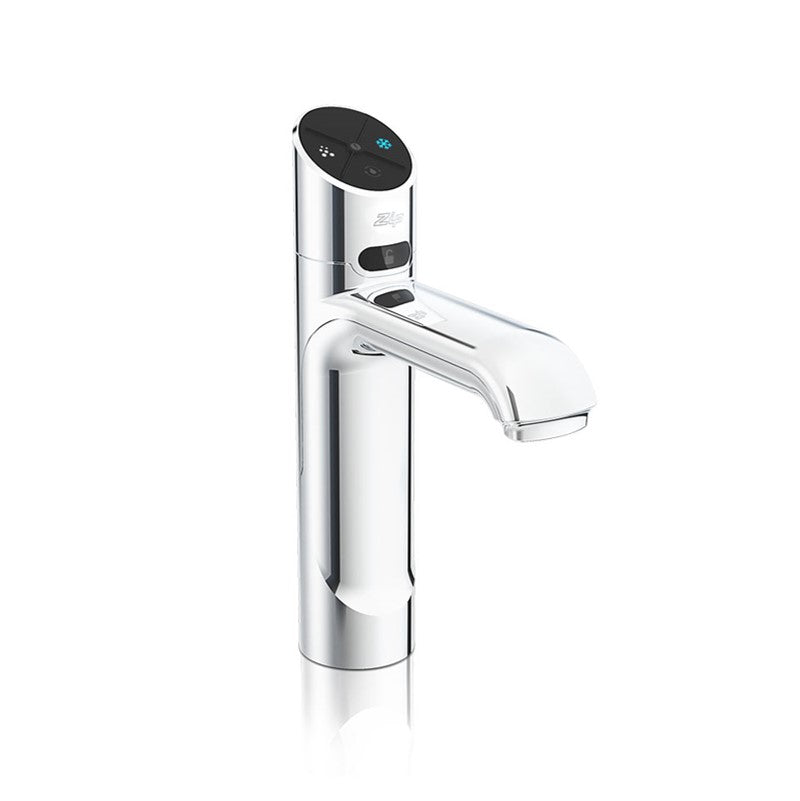

Zip Classic Plus HydroTap 175 G5 Chilled Sparkling Bright Chrome
Zip Classic Plus HydroTap 175 G5 Chilled Sparkling Bright Chrome is a durable tap with smooth operation and a clean design, suitable for commercial and domestic washrooms.
Key features & specifications
- Zip Classic Plus HydroTap 175 G5 Chilled Sparkling Bright Chrome The world's most advanced drinking water system, the HydroTap Classic Plus delivers a choice of instant filtered chilled and sparkling water for workplaces of all sizes. From a single tap and under counter command centre, the Classic Plus dispenses only the purest tasting water, filtered to a market-leading 0.2 micron
- 25 times more effective than a standard water filter jug. What's more, the HydroTap features superior technology to conserve water while saving energy and time. Advanced filtration Zip MicroPurityTM filters remove particles larger than 0.2 micron, such as dirt, lead and microplastics, as well as 97% of chlorine and 99.9% of microbiological cysts, providing pure-tasting drinking water. Enhanced hygiene The 5th generation HydroTap command centre has SteriTouch® embedded throughout the water path. This reduces surface bacteria by 99.99% providing extra protection. Environmentally conscious operation The HydroTap boasts a range of eco-friendly functionalities, including water conserving air cooling technology, the use of zero-impact refrigerant gas R290 and energy saving sleep modes. Unique user-safety options The Zip HydroTap is designed with safety in mind, with boiling isolation, cool touch tap and safety lock features. The boiling point is factory set to 98 degrees celsius, to avoid spluttering steam. Five Year Warranty This system is covered by a comprehensive full parts and labour warranty for 24 months, with an additional 36 months boiling tank cover.
Suitable for commercial and domestic washrooms needing a reliable, easy‑clean fitting.
MODEL |
MIXED HOT AND COLD |
FILTRATION 0.2 MICRON |
FONT | CO2 |
NOMINAL POWER RATING KW |
COMMAND CENTRE DIMENSIONS W X D X H |
H55765Z00UK | N | Y | Y | Y | 0.45 kW @ 230V AC | 500mm x 520mm x 373mm |
Specification Type |
|
Product Code | H55765Z00UK |
Product Name | HydroTap G5 Classic Plus chilled sparkling 175 bright chrome for work |
Capacity, Weights & Dimensions | |
Water functions | Chilled, Sparkling |
Chilled capacity | 175 Glasses per hour |
Sparkling capacity | 175 Glasses per hour |
Unit dimension (W x D x H) | 500mm x 490-520mm x 373mm |
Product weight - empty / full | 36kg / 44kg |
Plumbing | |
Wholesome water inlet supply required | Cold Feed |
Supply pressure range | 1.7bar - 5bar |
Supply connection (hot & cold) | 1 x isolated 1/2"bsp BSP fitting (flexible supply hoses included) |
Installation | Must comply with current water supply regulations |
Electrical | |
Command centre power rating | 0.45 kW @ 230V AC |
Voltage supply | 13 amps |
Power supply requirements | 1 x 13amp socket outlet |
Cable length | 1.8m fitted with UK standard 3-pin plug |
Installation | Must comply with current IEE regulations |
Tap design | |
Style | HydroTap Classic Plus |
Finish | Bright Chrome |
Installation hole cut size | 35mm |
Rotation | Fixed |
Disability options | No |
Country of Origin | Australia |
Command Centre | |
Factory temperature chilled | 3-5°C |
Filtration | 0.2 Micron Filter Cartridge |
Flow rate | 4.0 l/min |
Wholesome water supply requirements | Cold Feed |
Refrigerant | R290 |
Tank material | Stainless Steel |
Country of origin | Australia |
