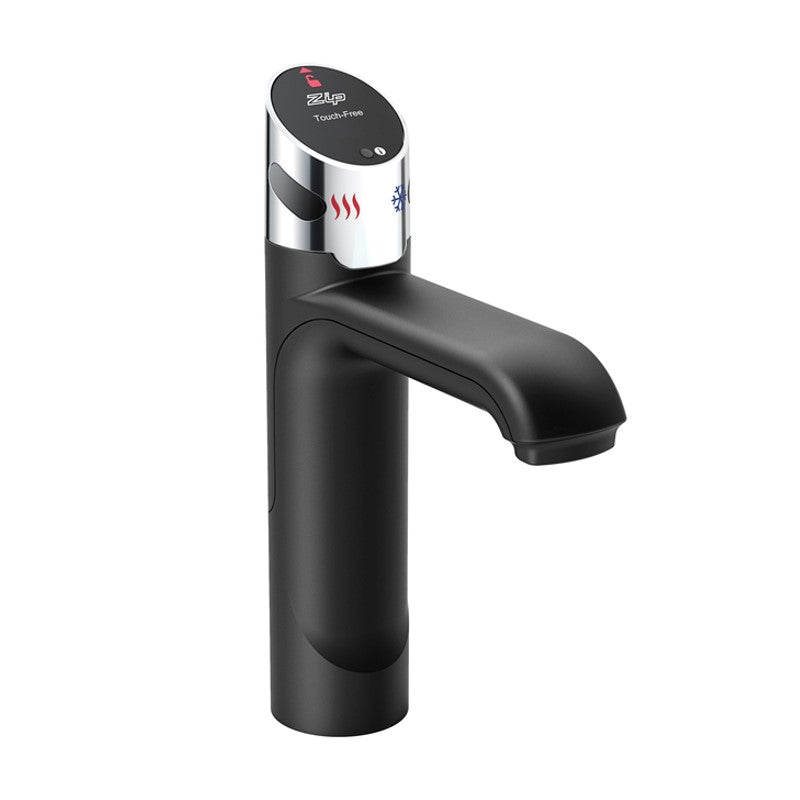

Zip Touch Free Wave HydroTap 100/75 G5 Boiling Chilled Sparkling Matt Black
Zip Touch Free Wave HydroTap 100/75 G5 Boiling Chilled Sparkling Matt Black is a durable tap with smooth operation and a clean design, suitable for commercial and domestic washrooms.
Key features & specifications
- ZIP TOUCH-FREE WAVE HYDROTAP 100/75 G5 BOILING CHILLED SPARKLING MATT BLACK With an increased consideration around hygiene in the workplace, the new Zip HydroTap Touch Free Wave uses smart infrared sensors to provide a 100% touch-free, safe to use solution for workplaces to access instant boiling, chilled and sparkling drinking water with a simple wave of the hand. A reliable solution for a range of locations, the tap boasts a number of safety features to prevent the accidental dispense of water. Like all our other HydroTaps, the Touch Free Wave offers cutting-edge technology to conserve water, energy and time, with market-leading 0.2 micron filtration
- 25 times more effective than a standard water filter jug. Advanced filtration Maintains existing protective levels of chlorine whilst removing sediment and cysts. This level of filtration includes the removal of dirt, lead, microplastics & 99.9% of microbiological cysts. Enhanced hygiene The 5th generation HydroTap command centre has SteriTouch® embedded throughout the water path. This reduces surface bacteria by 99.99% providing extra protection. Environmentally conscious operation The HydroTap boasts a range of eco-friendly functionalities, including water conserving air cooling technology, the use of zero-impact refrigerant gas R290 and energy saving sleep modes. Unique user-safety options The Zip HydroTap is designed with safety in mind, with boiling isolation, cool touch tap and safety lock features. The boiling point is factory set to 98 degrees celsius, to avoid spluttering steam. Five Year Warranty This system is covered by a comprehensive full parts and labour warranty for 24 months, with an additional 36 months boiling tank cover.
Suitable for commercial and domestic washrooms needing a reliable, easy‑clean fitting.
| MODEL |
MIXED HOT AND COLD |
FILTRATION 0.2 MICRON |
FONT | CO2 |
NOMINAL POWER RATING KW |
COMMAND CENTRE DIMENSIONS W X D X H |
| H5W760Z03UK | N | Y | Y | Y | 2.13 kW @ 230V AC | 339mm x 483 x 333mm |
|
Specification Type |
|
| Product Code | H5W760Z03UK |
| Product Name | HydroTap G5 Touch Free Wave boiling chilled sparkling 100/75 matt black for work |
| Capacity, Weights & Dimensions | |
| Water functions | Boiling, Chilled, Sparkling |
| Boiling capacity | 100 Cups per hour |
| Chilled capacity | 75 Glasses per hour |
| Sparkling Capacity | 75 Glasses per hour |
| Unit dimension (W x D x H) | 339mm x 483 x 333mm |
| Product weight - empty / full | 30kg / 35kg |
| Plumbing | |
| Wholesome water inlet supply required | Cold Feed |
| Supply pressure range | 2.5bar - 5bar |
| Supply connection (hot & cold) | 1 x isolated 1/2"bsp BSP fitting (flexible supply hoses included) |
| Installation | Must comply with current water supply regulations |
| Electrical | |
| Command centre power rating | 2.13 kW @ 230V |
| Voltage supply | 13 amps |
| Power supply requirements | 1 x 13amp socket outlet |
| Cable length | 1.8m fitted with UK standard 3-pin plug |
| Installation | Must comply with current IEE regulations |
| Tap design | |
| Style | HydroTap Touch-Free Wave |
| Finish | Matt Black |
| Installation hole cut size | 35mm |
| Rotation | Fixed |
| Disability options | No |
| Country of Origin | Australia |
| Command Centre | |
| Factory temperature boiling | 98°C |
| Factory temperature chilled | 3-5°C |
| Filtration | 0.2 Micron Filter Cartridge |
| Flow rate | 4.0 l/min |
| Wholesome water supply requirements | Cold Feed |
| Refrigerant | R290 |
| Tank material | PPS |
| Country of origin | Australia |
