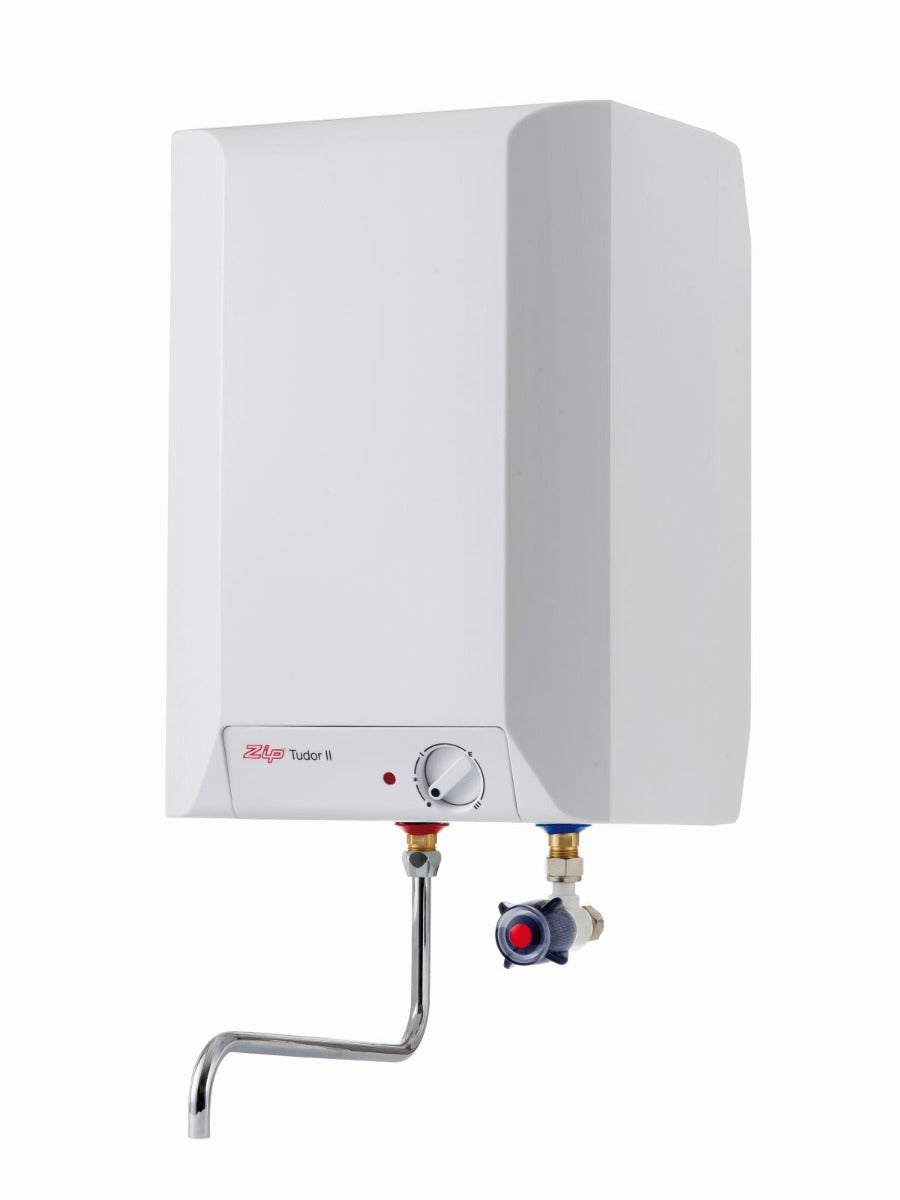

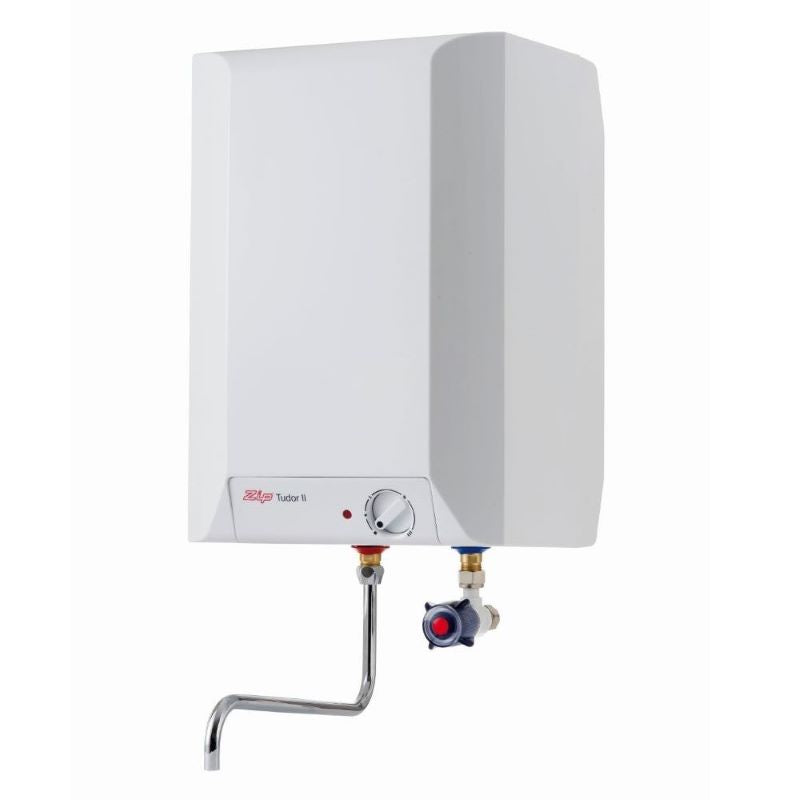

The Tudor system leads the way in delivery of hot water to single point of use remote sinks. Tudors offer full external temperature control ranging from 35ºC to 80ºC, the choice of 5 or 10 litre storage heaters and don’t require a safe tray.
Both cost effective and energy efficient.
WRAS Approved
Features and Benefits
Open outlet heater for single point of use.
Externally adjustable temperature control with frost protection
Manually re-settable cutout
Supplied complete with spout and valve
Supplied with 1 metre of pre-wired cable.
CFS-free insulation.
Impact resistant, easyclean white plastic casing.
Neon power-on indicator light
Choice of 5 and 10 litre capacity
Supplied complete with wall plugs and screws.
WRAS approved and CE endorsed
No need for expansion vessel or pressure relief valve.
Oversink and undersink models are not interchangeable
| Product Code | Colour | Height (mm) | Width (mm) | Depth (mm) |
Thermal Loss (kWh/day |
Capacity |
| T4OB5 | White | 390 | 255 | 255 | 0.32 | 5 Litres |
| T4OB10 | White | 440 | 310 | 265 | 0.40 | 10 Litres |
Technical Specifications
Rating : 2.0 kW @ 230V
Heating element : Embedded rod type
Thermostat : Capillary type, adjustable 35ºC to 80ºC
Inner Container : Polypropylene tested to 1.5 bar
Case : Impact resistant plastic
Insulation : Molded CFC-free polystyrene
Approvals : WRAS approved and CE endorsed
Warranty : One year on site parts and labour.
Plumbing : Can be connected to a rising main or to a cistern with a minimum working head of 5 metres.
Electrical : To be wired to a double pole switched fused spur with a minimum break capacity of 13 amps. Installation must comply with current IEE regulations.
