Zip Varipoint Oversink/Undersink Water Heater

Unvented multipoint water heater

Hot water storage tank manufactured from heavy gauge copper, pressure tested to 16 bar, with a working pressure of 6 bar

Fitted with a 2.2 kW heating element

Adjustable thermostat with positive location at each settings

Factory fitted pressure and temperature relief valve

Safety cutout, set at 95ºC, and with manual reset facility.

Storage tank with thermal insulation of pressure injected, polyurethane foam

Outer case of high impact, corrosion resistant, white plastic

15 mm BSP water connectors

Expansion relief valve set at 6 bar when required

Capacity 10 litres, 15 litres.

Rating 2.2 kW @ 230V AC.

Heating element Embedded rod type.

Thermostat Capillary type adjustable up to 80ºC.

Water tank Heavy gauge copper, pressure tested at 16 bar with a working pressure of 6 bar.

Case High impact resistant white plastic. Insulation Pressure injected polyurethane foam.

Safety features Manually resettable over temperature safety cut-out set at 95°C. Pressure relief valve (supplied) set at 6 bar. (AQ1)

Heater protected against frost whilst power is switched on.

Approvals WRAS Approved and CE Endorsed.

Warranty Five year on site parts and labour warranty on inner container, two years on controls.

Installation Location Separate models are supplied for over-basin and under-basin installation.

All models can supply one outlet or multiple outlets, no special taps required.

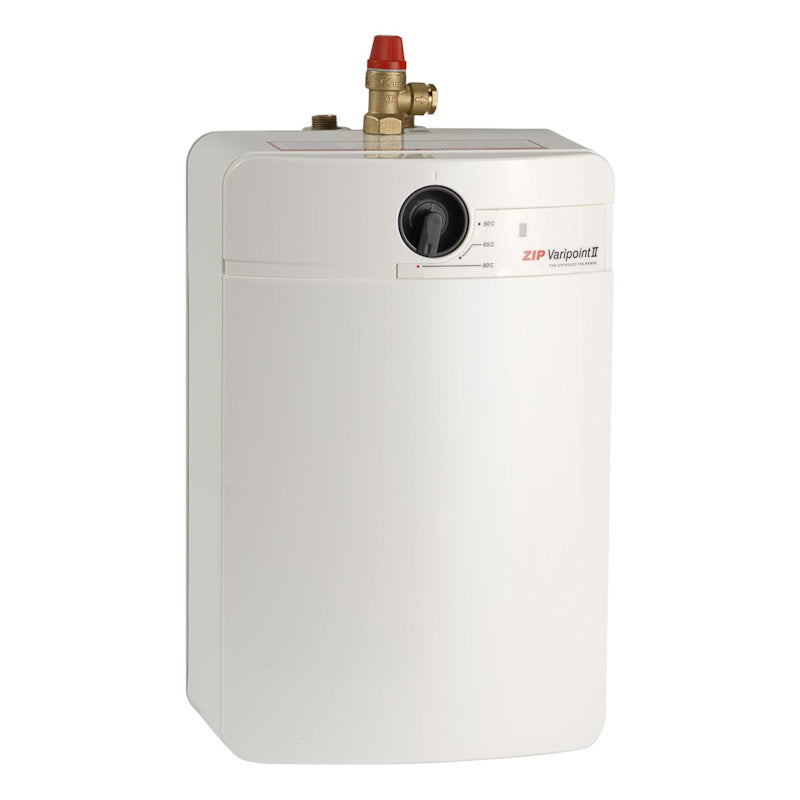

Under-basin is floor standing, connections uppermost.

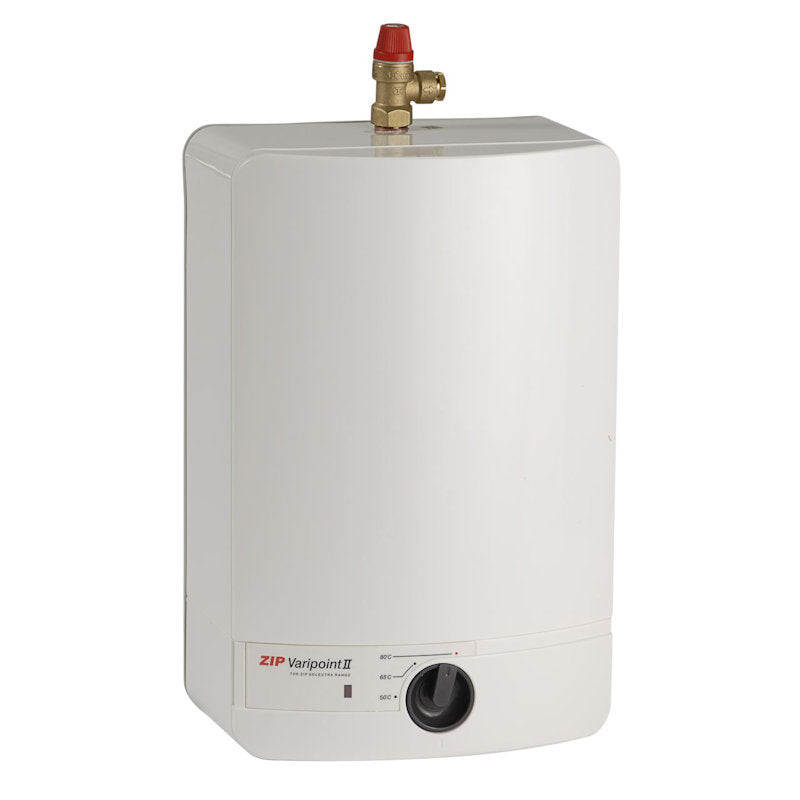

Over-basin is wall hung, on bracket provided.

Plumbing Water connections 15mm BSP. Expansion relief valve (supplied) to be fitted in cold water supply.

Should be installed only by a suitably experienced installer of unvented electric storage water heaters.

Electrical To be wired to a double pole fused spur, minimum break rating of 13 amp. Installation must comply with current IEE regulations. Caution Variable temperature water heaters should be set only in strict compliance with regulations governing the temperature of stored and dispensed hot water.
